An Attribute definition can be deleted by removing the corresponding entry on the Attribute Definitions dialog. When an Attribute definition is deleted, all values that have been assigned for that Attribute (for any design element) will also be removed from the design.
Because this Attribute deletion is irreversible, it should be done with caution.
All Attribute definitions can also be removed from a design using an operation in the Design menu.
How to Delete an Attribute Definition
1
Invoke the Attribute Definitions dialog by selecting "Define..." from the Attributes submenu within the Design menu.
Alternative : Press the Ctrl+Shift+A key combination.
2
Click on the entry corresponding to the Attribute to be deleted.
3
Press the <Delete> key to delete the Attribute and all assigned values.
How to Delete All Attribute Definitions
1

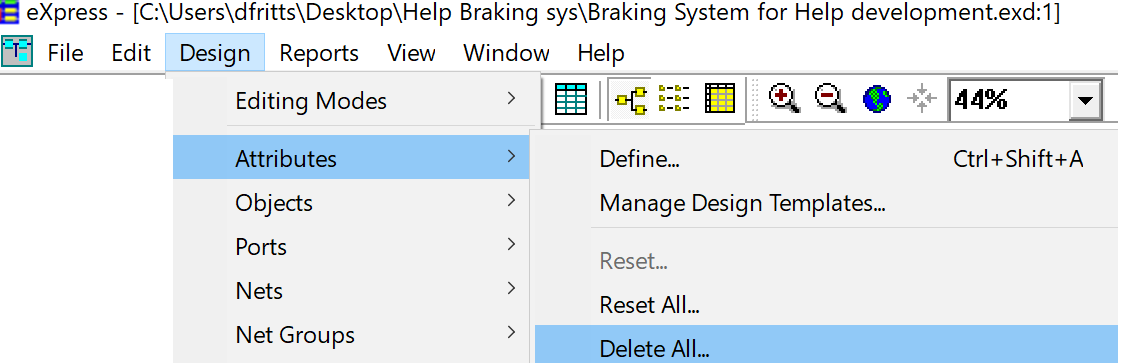

Select "Delete All..." from the Attributes submenu within the Design menu as shown below.
