Test Node Configuration

Test Node Configuration

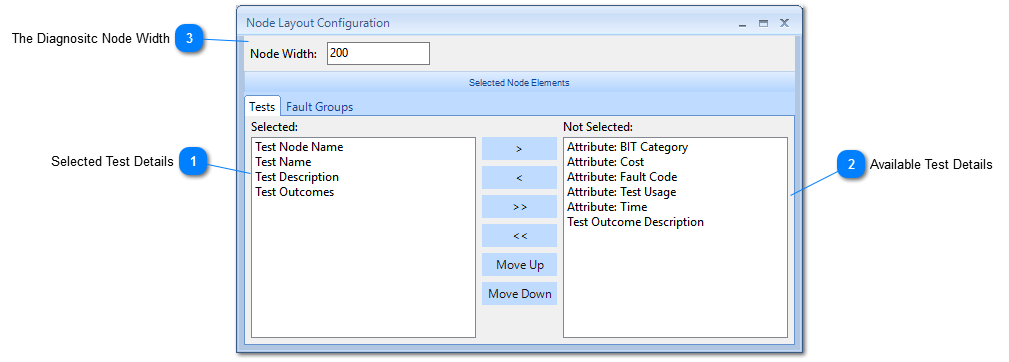

The test node configuration is used to configuration how test nodes in the diagnostic flow are displayed.
1

Selected Test Details

1. Selected Test Details
A list of test related items that will appear in the diagnostic flow.  These may include:
  • test name
  • diagnostic step node name
  • test description
  • test outcomes
  • test outcome description
  • test attributes
2

Available Test Details

2. Available Test Details
A list of test related items that may be select to display in the diagnostic flow.  These may include:
  • test name
  • diagnostic step node name
  • test description
  • test outcomes
  • test outcome description
  • test attributes
3

The Diagnositc Node Width

3. The Diagnositc Node Width
The overall width of the diagnostic nodes in the diagnostic flow view.  This setting is the same for both tests and fault groups.
