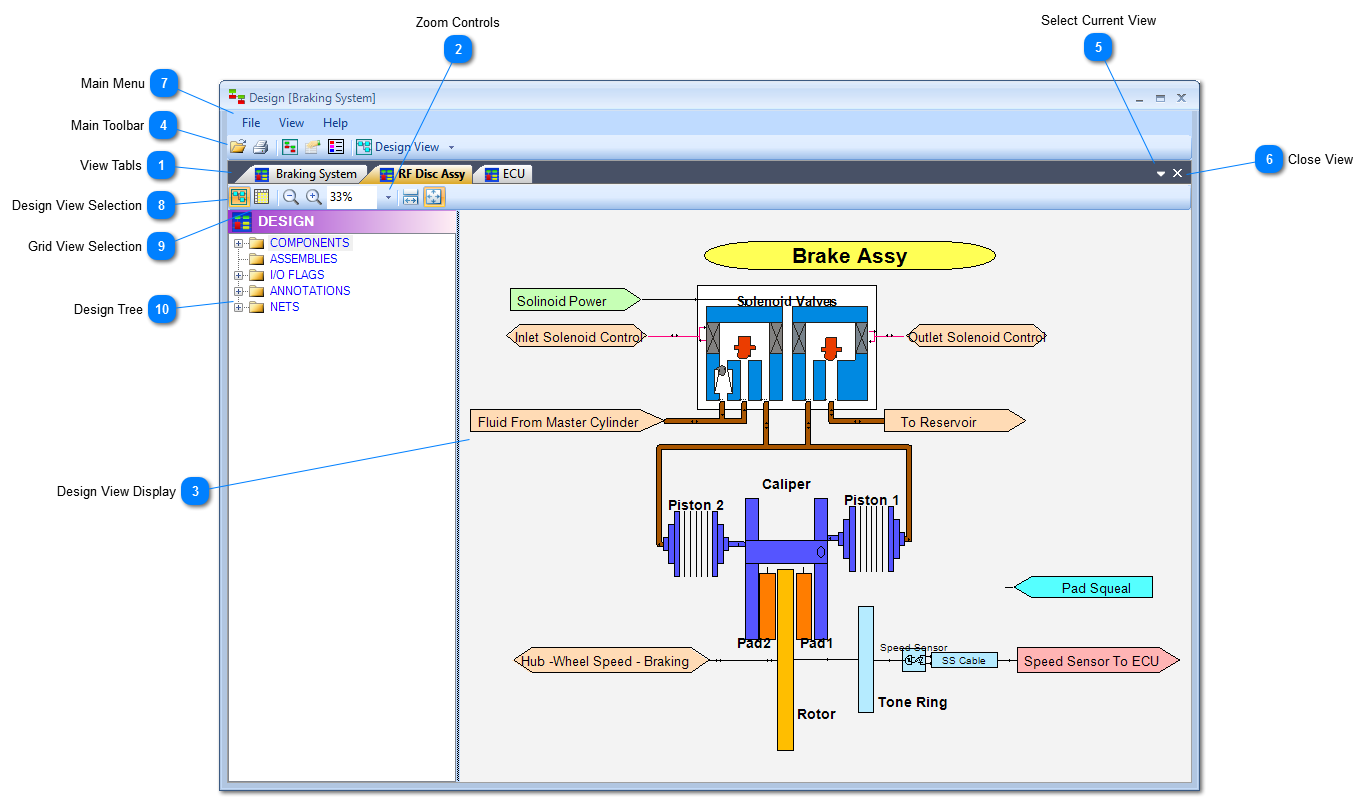

 View Tabls
<TODO>: Insert description text here...
|
|
 Zoom Controls
The view zoom controls
|
|

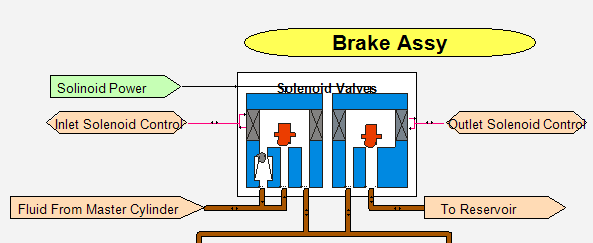

 Design View Display
The design view displays the graphical representation of the design. The design view display can display the design view using:
-
The original design colors
-
The diagnostic status colors
-
|
|
 Main Toolbar
The main toolbar controls are always available in all views.
|
|
 Select Current View
Select top open a drop down list of all views that are currently open. Then select the view in the list to display that view.
|
|
 Close View
Select to close the currently displayed view. The top level view of the design will not allow
|
|
 Main Menu
The main toolbar to open/close designs, the diagnostic panel, the properties panel, the color legend and help.
|
|
 Design View Selection
Selects the design view mode to view the design graphically.
|
|
 Grid View Selection
Selects the grid view mode to view the design as a table or spreadsheet.
|
|
 Design Tree
The design tree is used to select which items will appear in the grid when using grid view.
|
|
