eXpress Design Viewer Help Copyright © 2014

Grid View

Grid View

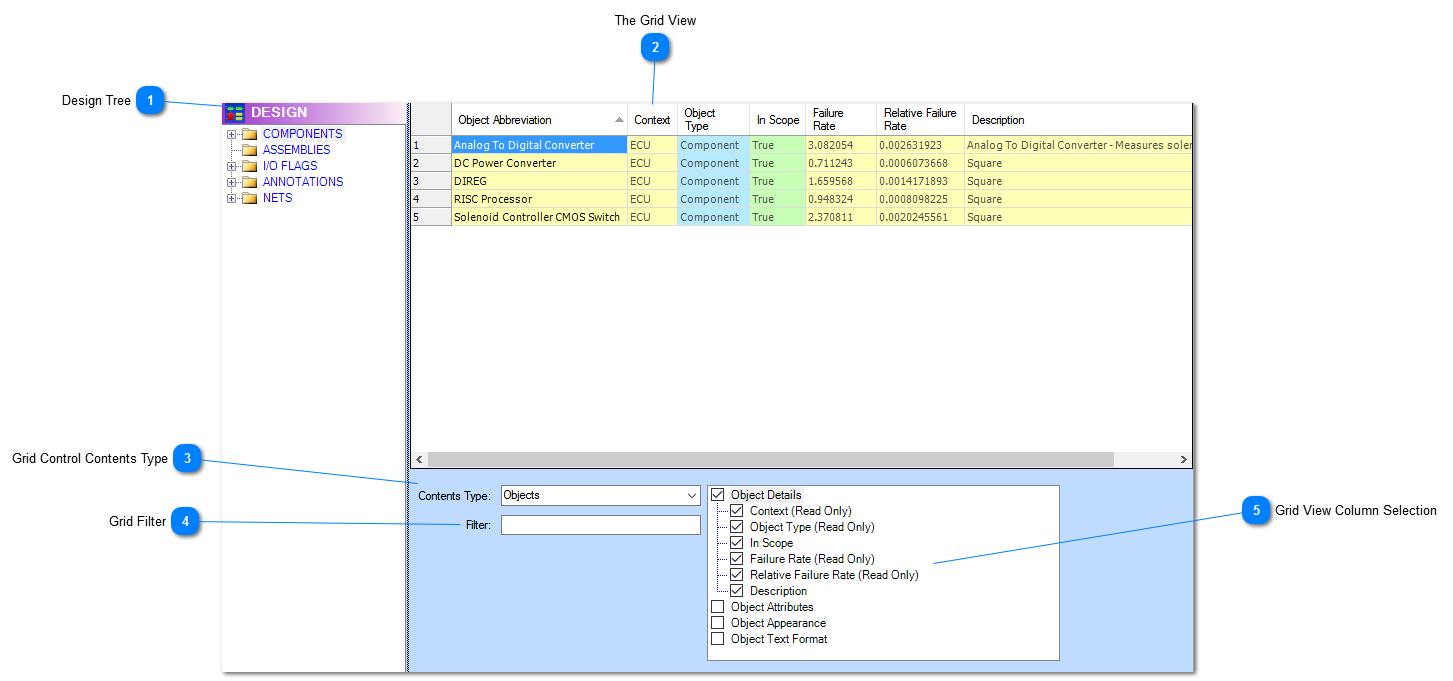

The grid view displays the components in the design in a customizable table format.  The customization of the table is defined by the grid control panel at the bottom of the grid.
1

Design Tree

1. Design Tree
The design tree is used to select which items will appear in the grid.
2

The Grid View

2. The Grid View

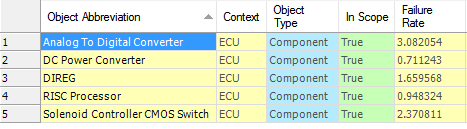

The grid view is a read only view of components with selected columns or item data.
3

Grid Control Contents Type

3. Grid Control Contents Type
The grid contents type defines the content to view in the grid.  Content types include:
  • Objects
  • Ports
  • Functions
  • Failure Modes
  • Nets
4

Grid Filter

4. Grid Filter
The grid filter with selective filter among the selected items by the filter.  The filter will only filter based upon the column that is current selected by the currently selected cell in the table.
5

Grid View Column Selection

5. Grid View Column Selection
The grid view column select is used to define what is displayed in the grid.
