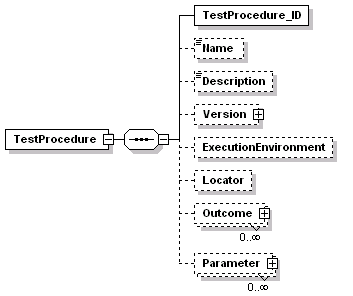

diagram
|
|
|
children
|
|
|
identity constraints
|
|
|
Name
|
Refer
|
Selector
|
Field(s)
|
|
key
|
TestProcedure_Key
|
|
TestProcedureID
|
.
| |
|
source
|
<xs:element name="TestProcedure" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element name="TestProcedure_ID"/>
<xs:element name="Name" type="xs:string" minOccurs="0"/>
<xs:element name="Description" type="xs:string" minOccurs="0"/>
<xs:element name="Version" type="Version_Type" minOccurs="0"/>
<xs:element name="ExecutionEnvironment" minOccurs="0"/>
<xs:element name="Locator" minOccurs="0"/>
<xs:element name="Outcome" type="Outcome_Type" minOccurs="0" maxOccurs="unbounded">
<xs:key name="TestProcedureOutcome_Key">
<xs:selector xpath="TestProcedure"/>
<xs:field xpath="./Outcome_ID"/>
</xs:key>
</xs:element>
<xs:element name="Parameter" type="Parameter_Type" minOccurs="0" maxOccurs="unbounded">
<xs:key name="Parameter_Key">
<xs:selector xpath="TestProcedure"/>
<xs:field xpath="./Parameter_ID"/>
</xs:key>
</xs:element>
</xs:sequence>
</xs:complexType>
<xs:key name="TestProcedure_Key">
<xs:selector xpath="TestProcedureID"/>
<xs:field xpath="."/>
</xs:key>
</xs:element>
|
