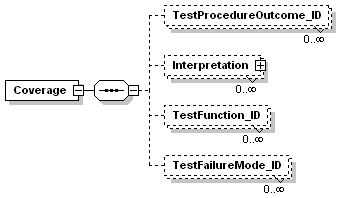

diagram
|
|
|
children
|
|
|
identity constraints
|
|
|
Name
|
Refer
|
Selector
|
Field(s)
|
|
keyref
|
TestProcedureOutcome_KeyRef
|
TestProcedureOutcome_Key
|
Coverage/TestProcedureOutcome_ID
|
.
|
|
keyref
|
TestFunction_KeyRef
|
Function_Key
|
Function_ID
|
.
|
|
keyref
|
TestFailureMode_KeyRef
|
FailureMode_Key
|
FailureMode_ID
|
.
| |
|
source
|
<xs:element name="Coverage" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element name="TestProcedureOutcome_ID" minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="Interpretation" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element name="Type">
<xs:simpleType>
<xs:restriction base="xs:Name">
<xs:enumeration value="Pass"/>
<xs:enumeration value="Fail"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="TestFunction_ID" minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="TestFailureMode_ID" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
<xs:keyref name="TestProcedureOutcome_KeyRef" refer="TestProcedureOutcome_Key">
<xs:selector xpath="Coverage/TestProcedureOutcome_ID"/>
<xs:field xpath="."/>
</xs:keyref>
<xs:keyref name="TestFunction_KeyRef" refer="Function_Key">
<xs:selector xpath="Function_ID"/>
<xs:field xpath="."/>
</xs:keyref>
<xs:keyref name="TestFailureMode_KeyRef" refer="FailureMode_Key">
<xs:selector xpath="FailureMode_ID"/>
<xs:field xpath="."/>
</xs:keyref>
</xs:element>
|
